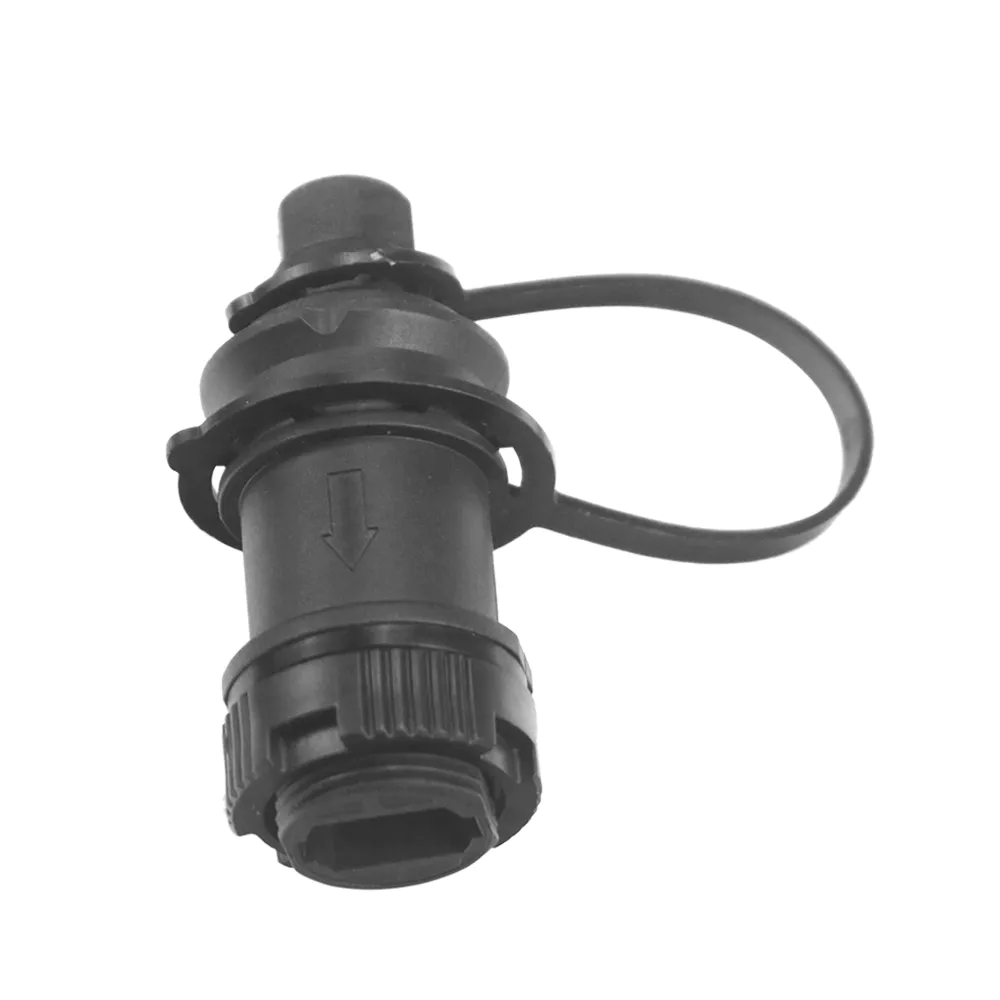

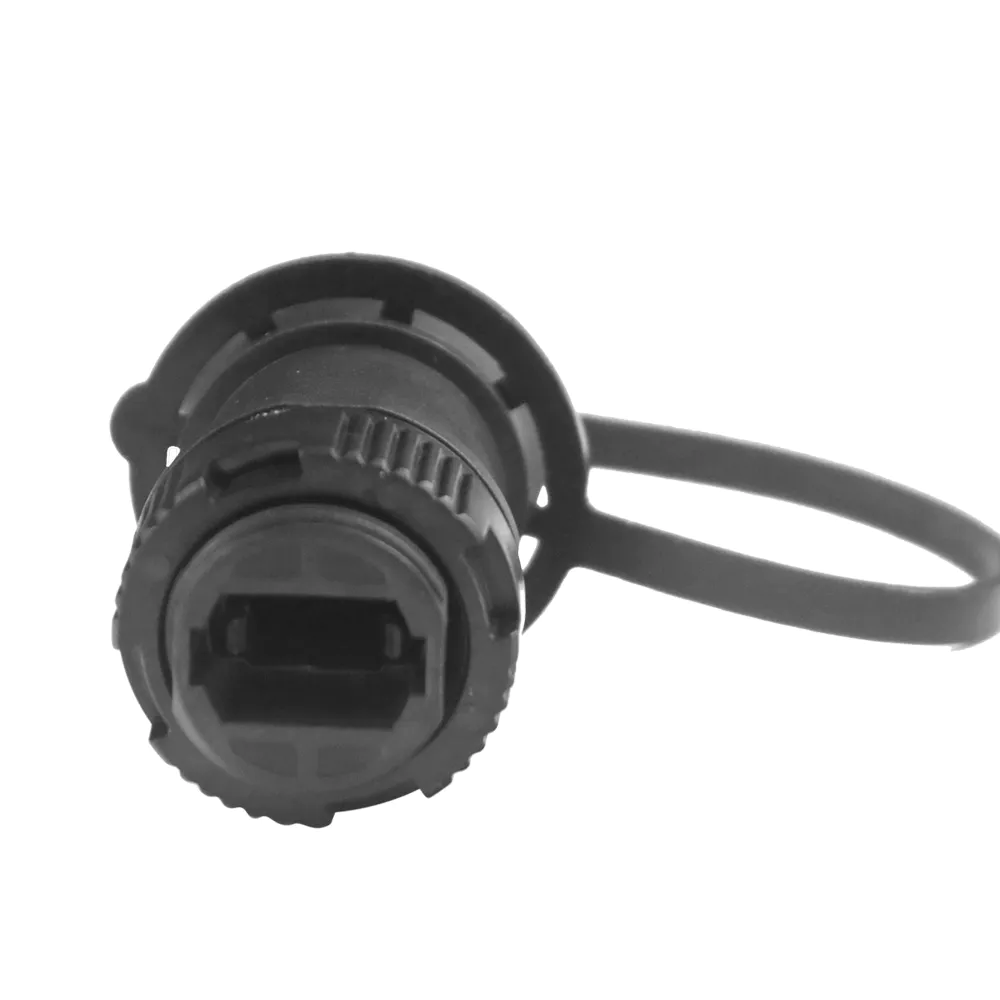

Product Details .....................................................................................................................
Features ...............................................................................................................................
- High-precision ceramic butt sleeve.
- Low insertion loss, high return loss.
- Superior product interchangeability and repeatability.
- Excellent environmental and mechanical properties.
- Common with the original Corning adapter
Applications .........................................................................................................................
- It is mainly used for outdoor waterproof installation and connecting Corning connector equipment and optical fiber distribution box products whose output ports are connected to Corning connectors.
- It can be quickly matched and fixed with corresponding connectors to ensure efficient coupling between connectors.
Specifications .................................................................................................
| Project | Specification | Standard |
| Operating Wavelength | 1260~1650nm | >IEC 61300>> Standard |
| Insertion Loss | ≤>0.>2>dB>（>Typical value>： >0.2dB)>
|
|
| Return Loss | ≥60dB >（ >APC >） >≥50dB(UPC)> | |
| Repeatability | ≤0.1dB> | |
| Interchangeability | ≤0.1dB | |
| Installation Diameter> | 25mm | |
| Working Temperature | -40~85℃ |
Fiberroom Services ..........................................................................................................
- Any questions will be replied to within 24 hours.
- Professional manufacturer, Welcome to visit our company.
- 100% test before shipping.
- OEM/ODM is available (As required print logo and customized color).
