Features ...............................................................................................................................
- Special composite loose tube reduces low-temperature tube shrinkage;
- Precise control of excess optical fiber length ensures stable cable performance;
- Unique process control prevents sheath wrinkling during air blowing;
- High-density polyethylene outer sheath increases air-blowing distance.
Applications .........................................................................................................................
- Air blowing installation
- Core network
- Metropolitan Area Network (MAN)
- Access network
- Backbone network
- Local Area Network (LAN)
- FTTx network
- Datacenter
Specifications .......................................................................................................................

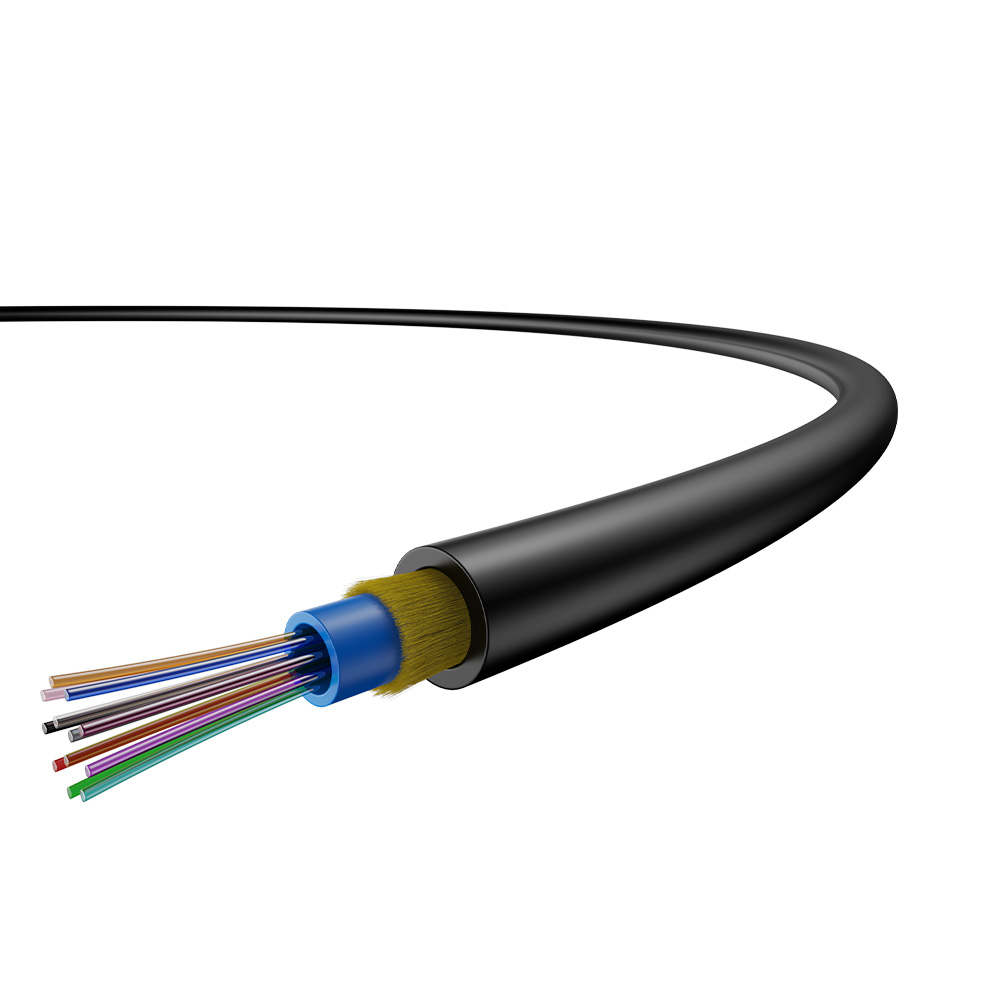

| Micro cable model | GCYFXY | |
| Fiber core number | 2~12 | 14~24 |
| HDPE outer jacket thickness | Nominal: 0.50mm, Minimum: 0.40mm | |
| Nominal outer diameter(mm) | 4.0mm | 4.5mm |
| approx. Weight(g/m) | 12kg/km | 16kg/km |
| Maximum pressure | 120N | 150N |
| Maximum crushing force | 1000N/100mm | |
| Minimum static bending radius allowed | 10 times the outer diameter of the optical cable | |
| Minimum allowable dynamic bending radius | 20 times the outer diameter of the optical cable | |
| Temperature range | Storage: -40℃ ～ +60℃ Operation: -10℃ ～ +40℃ Installation: -30℃ ～ +50℃ | |
