Features ...............................................................................................................................
- Apply for FTTH optical fiber
- Fast and live connecting
- The same function as a standard optical connector
- Without redundant cable, easy management
Applications .........................................................................................................................
- Optical fiber communication room
- Coss connecting cabinet
- CATV
- NET UPON
- FTTB/FTTH
- Network cabinet
Product Details .................................................................................................................................

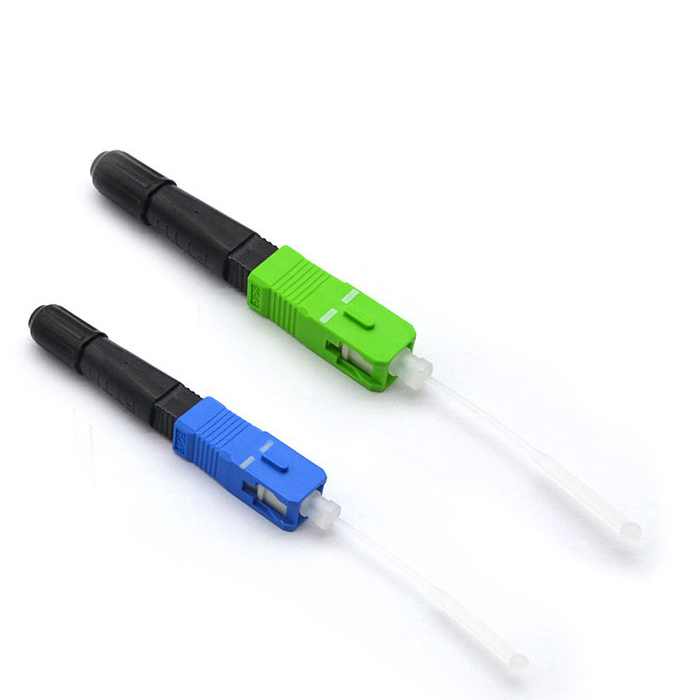

| Connector Type | Hot-Melt Type APC/UPC | Connector Color | Blue/Green |

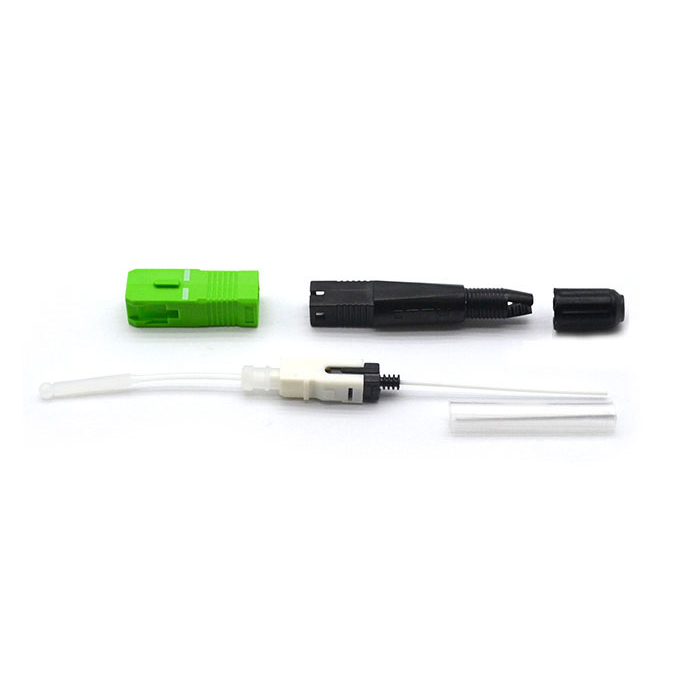

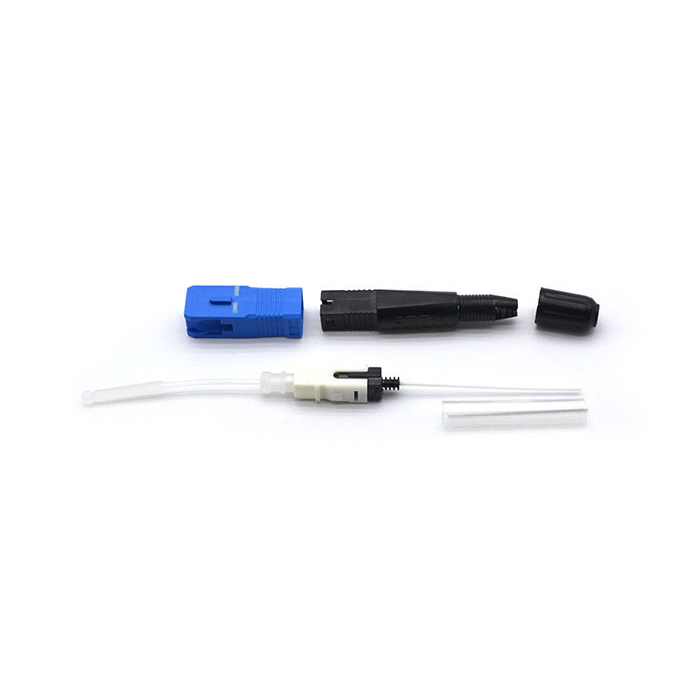

| Connector Length | 60mm | Connector Structure | Pre-embedded Type |
| Fiber Mode | SM or MM | Cable Type | φ3.0mm round cable；2*3mmFlat cable |
Product Configuration .......................................................................................................................
| Item | Parameter | |
| Single-Mode | Multi-Mode | |
| Insertion Loss | ≤0.3dB | |
| Durability(1000 Mating) | 0.2dB Max. | |
| Operating Temperature | -40°C~+75°C | |
| Storage Temperature | -40°C~+85°C | |
| Remark: Ferrule Concentricity SM< 1um; MM< 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance +/-0.5 um | ||
Fiberroom Services ..........................................................................................................
- Any questions will be replied to within 24 hours.
- Professional manufacturer, Welcome to visit our company.
- 100% test before shipping.
- OEM/ODM is available (As required print logo and customized color).
