Features ...............................................................................................................................

  1. Excellent Mechanical, Small Size
  2. High Reliability
  3. Low insertion Loss and low Polarization Dependent loss
  4. High channel counts
  5. Excellent Environmental Stability and Widely Used

Applications .........................................................................................................................

  1. Cable television (CATV)
  2. Local area networks (LAN)
  3. Test equipment
  4. Passive optical networks(PON)

Parameter .......................................................................................................................

1xN Technical Specs for PLC Splitter with Connector

Item 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Fiber Type G.657.A
Working Wavelength 1260nm~1650nm
Max.Insertion Loss(dB) ≤4.1 ≤7.4 ≤10.5 ≤13.8 ≤17.1 ≤20.4 ≤23.8
Uniformity(dB) ≤0.8 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
PDL(dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Wavelength Dependent Loss(dB) ≤0.8 ≤0.8 ≤0.8 ≤1.0 ≤1.0 ≤1.0 ≤1.2
Return Loss(dB) ≥50 ≥50 ≥50 ≥50 ≥50 ≥50 ≥50
Directivity(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55 ≥55

2xN Technical Specs for PLC Splitter with Connector

Item 2x2 2x4 2x8 2x16 2x32 2x64 2x128
Fiber Type G.657.A
Working Wavelength 1260nm~1650nm
Max.Insertion Loss(dB) ≤4.4 ≤7.7 ≤10.8 ≤14.1 ≤17.4 ≤20.7 ≤24.1
Uniformity(dB) ≤0.8 ≤1.0 ≤1.0 ≤1.5 ≤2.0 ≤2.5 ≤2.5
PDL(dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Wavelength Dependent Loss(dB) ≤0.8 ≤0.8 ≤0.8 ≤1.0 ≤1.0 ≤1.0 ≤1.2
Return Loss(dB) ≥50 ≥50 ≥50 ≥50 ≥50 ≥50 ≥50
Directivity(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55 ≥55
Note: The above parameter is for Splitter with connector. If w/o connector, insertion loss will reduce by 0.2dB.

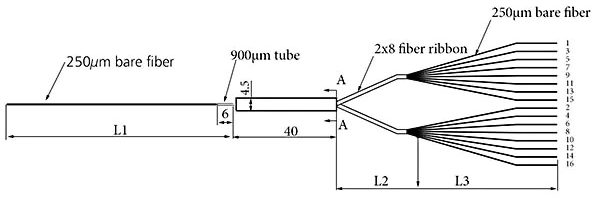

PLC Splitter Type .......................................................................................................................

Product Model 1X2、1x3、1X4、1X6

1X8、2x2、2X4、2X8

 1X10、1x12、1X16 2X16 1X32 2X32 1X16、2X64

Fiberroom Services ..........................................................................................................

  1. Any questions will be replied to within 24 hours.
  2. Professional manufacturer, Welcome to visit our company.
  3. 100% test before shipping.
  4. OEM/ODM is available (As required print logo and customized color).
